Project
Areas

Area 1

Title

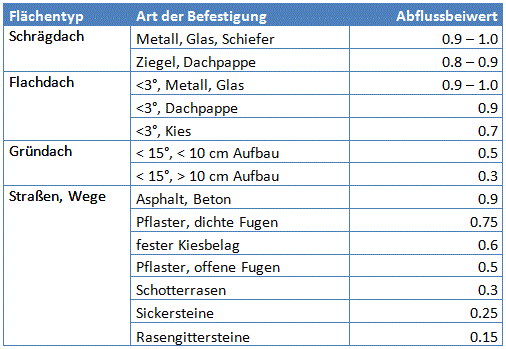

The runoff coefficient is the quotient of the part of a precipitation event that comes directly to the runoff (also called effective rainfall) and the total rainfall. The runoff coefficient can be entered manually or selected from the menu and must be between 0 and 1. The DWA regulations recommend the following runoff coefficients depending on the surface condition:

Source: DWA-Arbeitsblatt A138
Title

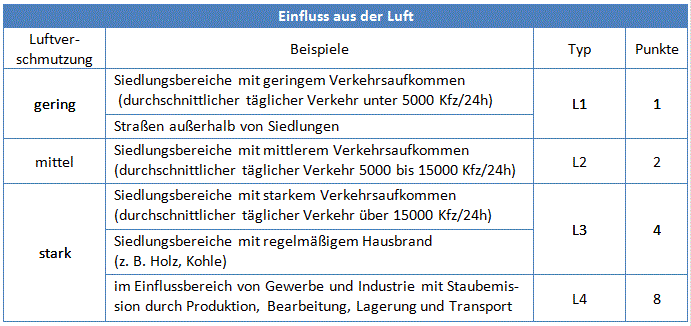

According to DWA M153, the burden of precipitation discharges is defined by so-called load points. The load points B are made up of the air load L and the wing load F.The following classes are distinguished for the air load L according to M153:

Source: DWA-Arbeitsblatt M153


This field is only active if "Consider treatment" was set to "yes" for the current project.
Title

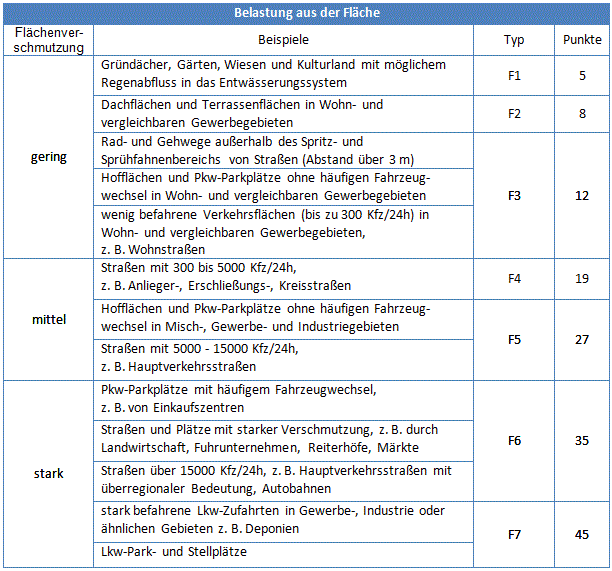

According to DWA M153, the burden of precipitation discharges is defined by so-called load points. The load points B are made up of the air load L and the wing load F. For the wing load F, the following classes are distinguished according to M153:

Source: DWA-Merkblatt M153


This field is only active if "Consider treatment" was set to "yes" for the current project.

m2

Area 2

Title

The runoff coefficient is the quotient of the part of a precipitation event that comes directly to the runoff (also called effective rainfall) and the total rainfall. The runoff coefficient can be entered manually or selected from the menu and must be between 0 and 1. The DWA regulations recommend the following discharge coefficients depending on the surface condition:

Source: DWA-Arbeitsblatt A138
Title

According to DWA M153, the burden of precipitation discharges is defined by so-called load points. The load points B are made up of the air load L and the wing load F. The following classes are distinguished for the air load L according to M153:

Source: DWA-Arbeitsblatt M153


This field is only active if "Consider treatment" was set to "yes" for the current project.
Title

According to DWA M153, the burden of precipitation discharges is defined by so-called load points. The load points B are made up of the air load L and the wing load F. For the wing load F the following classes are distinguished according to M153:

Source: DWA-Merkblatt M153


This field is only active if "Consider treatment" was set to "yes" for the current project.

m2

Area 3

Title

The runoff coefficient is the quotient of the part of a precipitation event that comes directly to the runoff (also called effective rainfall) and the total rainfall. The runoff coefficient can be entered manually or selected from the menu and must be between 0 and 1. The DWA regulations recommend the following discharge coefficients depending on the surface condition:

Source: DWA-Arbeitsblatt A138
Title

According to DWA M153, the burden of precipitation discharges is defined by so-called load points. The load points B are made up of the air load L and the wing load F.The following classes are distinguished for the air load L according to M153:

Source: DWA-Arbeitsblatt M153


This field is only active if "Consider treatment" was set to "yes" for the current project.
Title

According to DWA M153, the burden of precipitation discharges is defined by so-called load points. The load points B are made up of the air load L and the wing load F. For the wing load F the following classes are distinguished according to M153:

Source: DWA-Merkblatt M153


This field is only active if "Consider treatment" was set to "yes" for the current project.

m2

Measure

0 ls x ha

Title

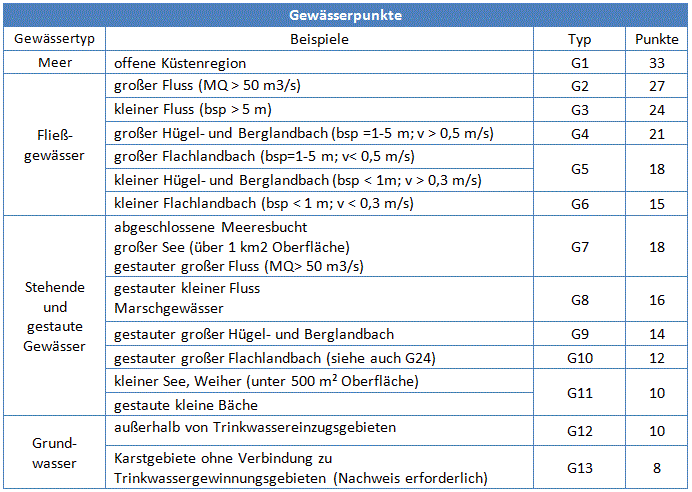

According to DWA M153, the permissibility of the discharge of precipitation discharges is defined by so-called water points. For waters with normal protection needs, the following classes are distinguished according to M153:

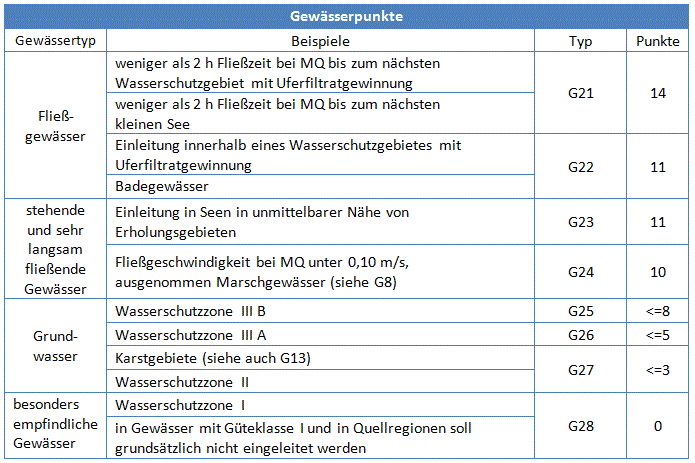

For waters with special protection needs, the following classes are distinguished according to M 153:

m2

Your data
* Required fields
