Jansen Hermetic 70FP-30 Door

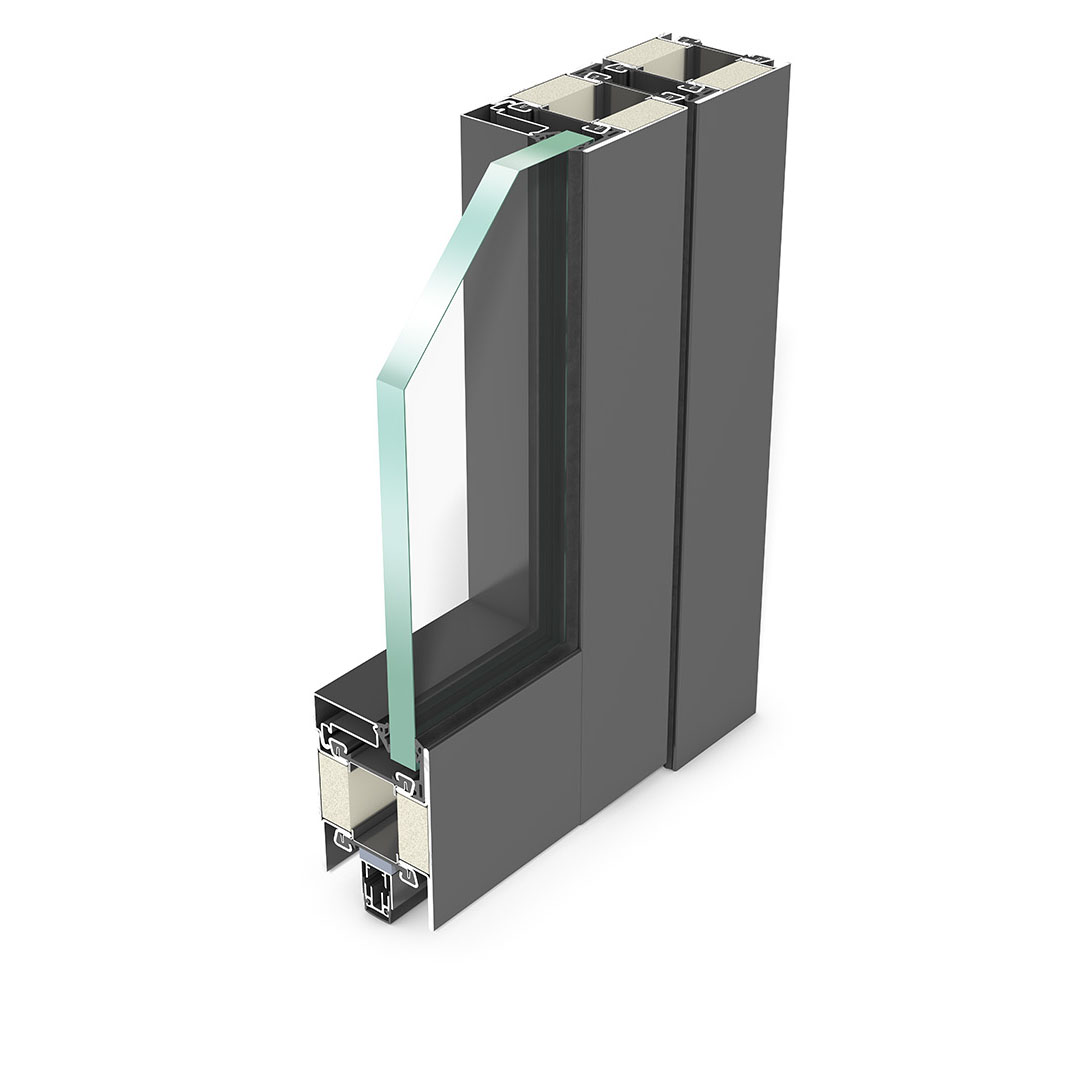

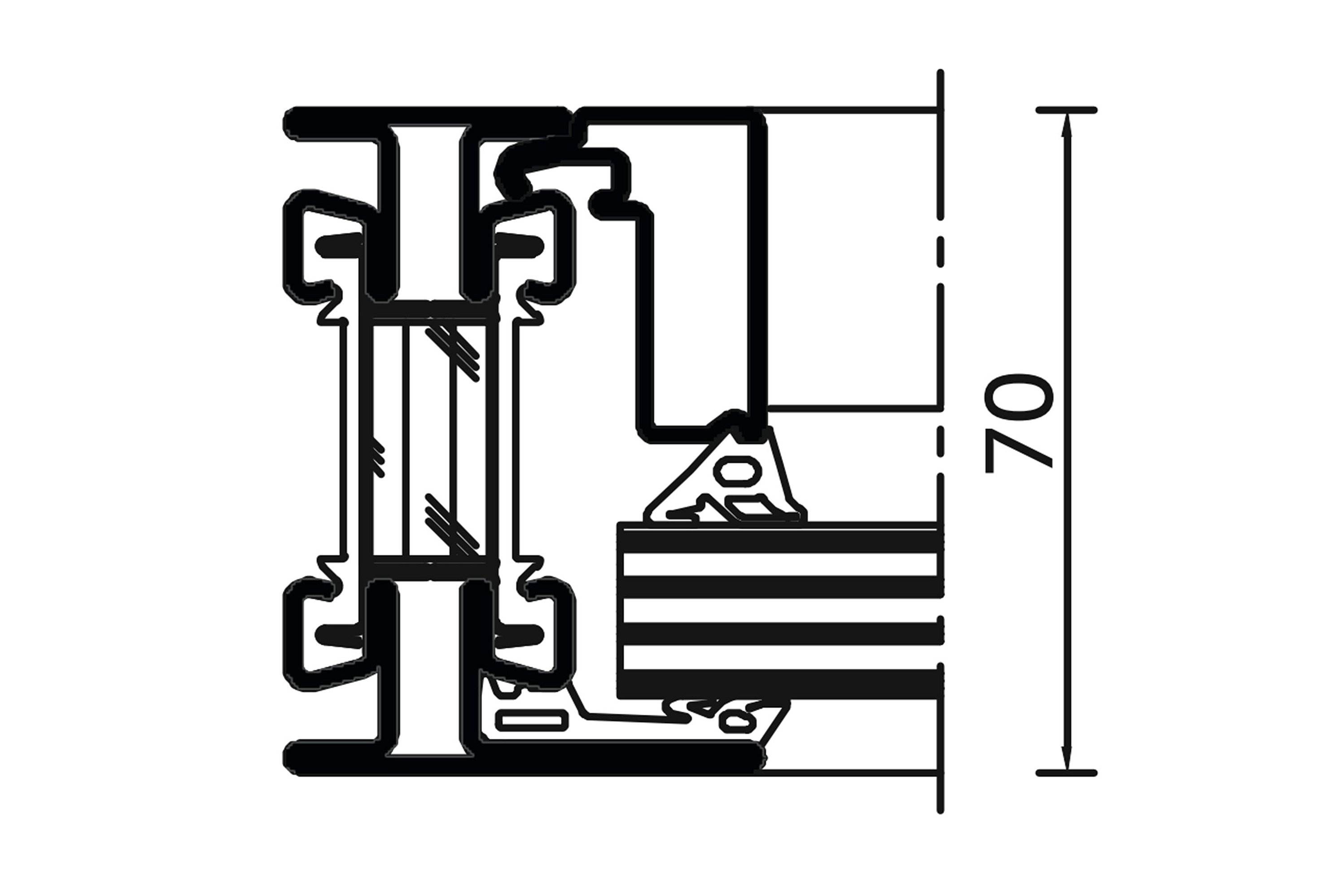

Thermally insulated fire and smoke protection door system and partition walls of steel or stainless steel with a profile depth of 70 mm in compliance with classifications E30/EW30. This well-thought-out modular system features spot-on protective functions and a uniform appearance across all elements of a project. This is accomplished by equipping the basic profile of the Jansen Hermetic 70 series as required for compliance with different fire and smoke protection standards.
- Steel profile system for fire and smoke protection doors and partition walls
- Made of steel or stainless steel
- Identical face width for doors and partition walls
- Depending on the requirements, infill thicknesses of up to 54 mm for doors are possible.
- Design freedom due to optionally screwed square and rectangular profiles as well as elbows as glazing bead.
- Compared to other materials, steel offers the advantage of a planar, elegant mitre due to seamless transitions at the profile joints
- Compatible with other Jansen window, door and curtain wall systems
Technical details
- Burglar resistance: RC(2); 3
- Sound insulation: < 44 dB (-1/-2) for Doors
- Continuous performance test: 200.000; 1 Mio.
- Continuous performance test: mechanical stress: up to C8
- Fire protection F (partition walls): F30
- Fire protection T (doors): T30
- Fire protection EW (doors): EW30
- Fire protection EI (partition walls): EI30
- Fire protection EI (doors): EI230
- Smoke protection (national: Germany): RS-1 / RS-2 (Doors)
- Smoke protection (Europe): Sa, S200 (Doors)
- Ability to release: fulfilled
- Fall protection barrier glazing: fulfilled (Partition walls)
- Mechanical performance: fulfilled
- Mechanical strength: 4 (Doors)
