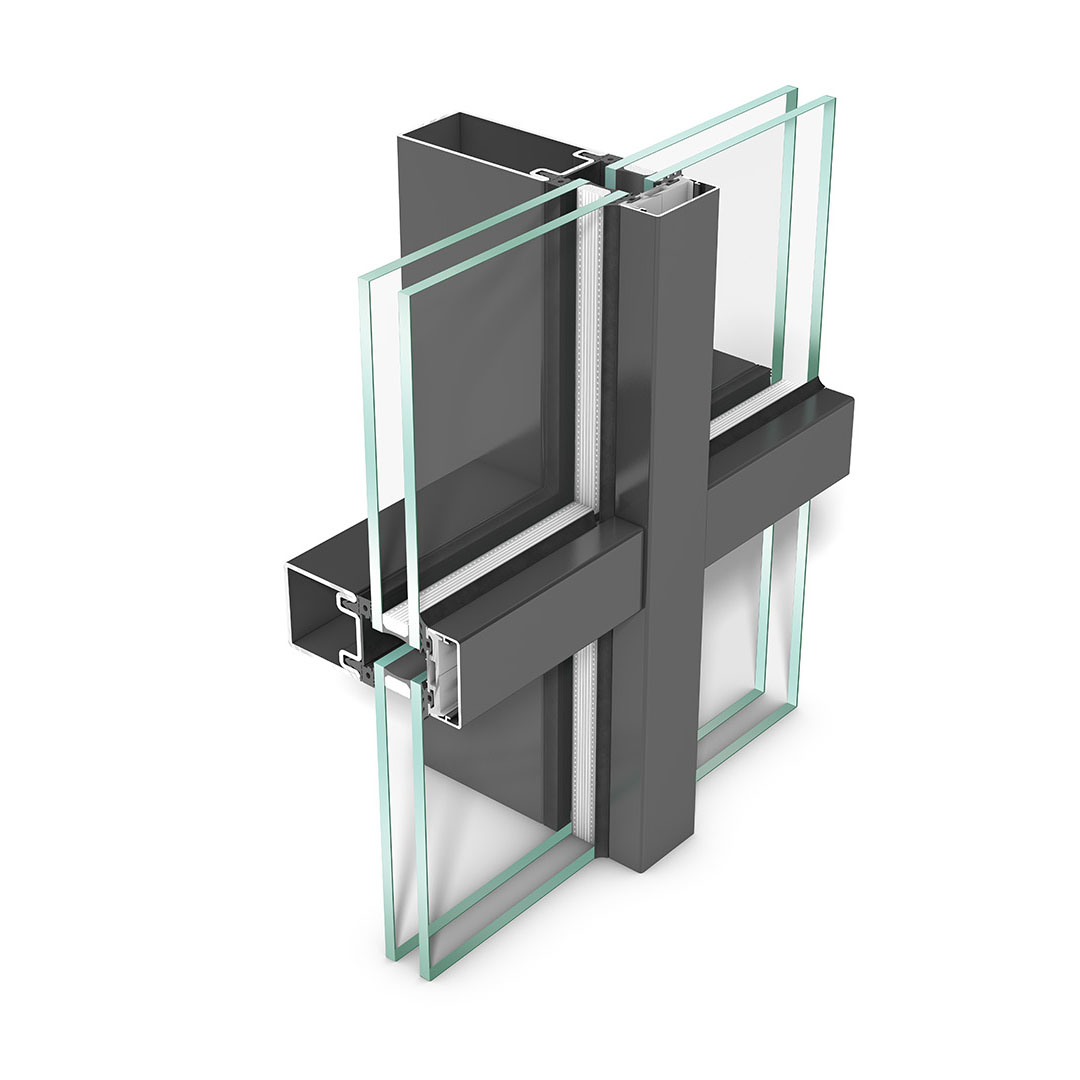

Jansen Tec 45 Facade
Mullion-transom curtain wall with a face width of 45 mm for transparent, modern architecture. Steel provides high structural strength combined with maximum transparency thanks to a face width of only 45 mm. This paves the way for large spans, slim geometries, and high glass weights.
- Elegantly slim face width of 45 mm
- Suitable for large spans as the modulus of elasticity of steel is three times higher than that of aluminium
- Vertical and polygonal configurations are possible
- Compatible with Jansen Tec add-on curtain walls and with Jansen Fineline and Jansen Hermetic window profiles
Technical Details
- Resistance under wind load : ±1375 Pa; Security ±2062 Pa
- Air permeability : AE
- Watertightness : RE 1200
- Impact strength : E5-I5
- Burglar resistance : RC4
- Thermal transmittance : Ucw ≥ 1,4 W/m²K
- Sound insulation : ≤ 41 dB
- Fire protection EI (partition walls) : up to EI-120
