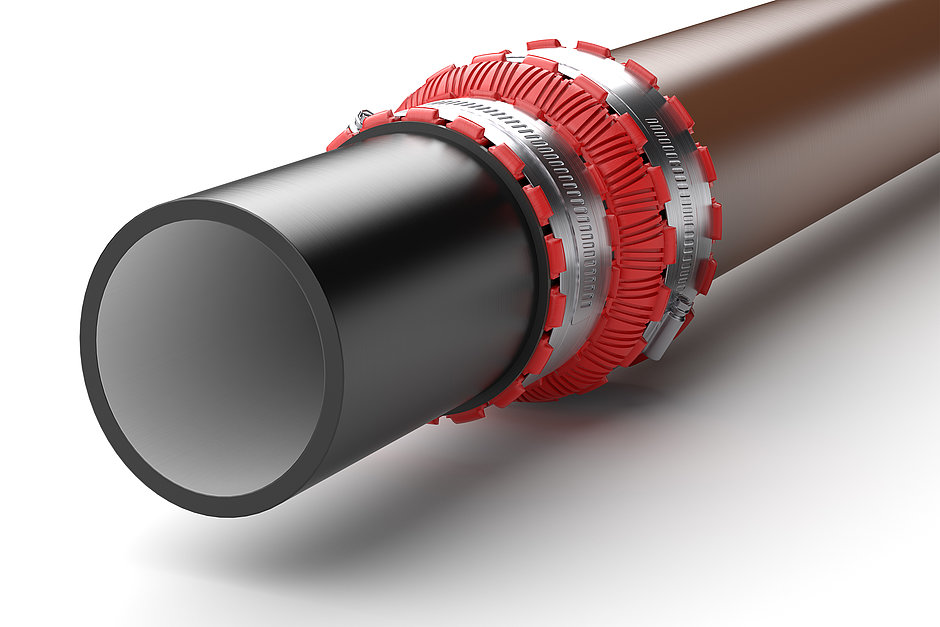

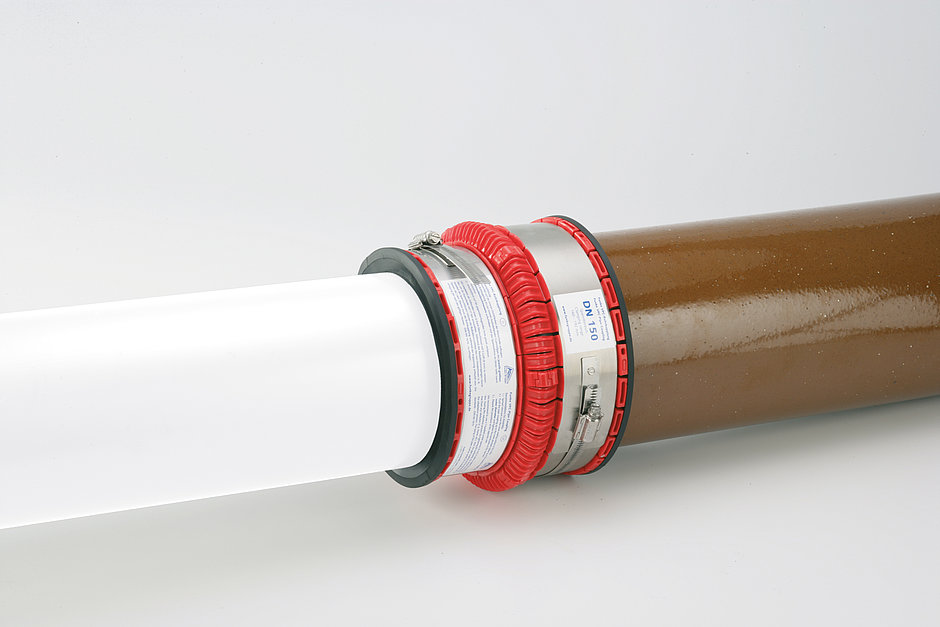

VPC pipe coupler
Permanently leak-proof connection of pipes
The VPC pipe coupler is suitable for connecting different types of pipe with different diameters.
The Connex connection system is suitable for the lateral connection of pipes made of PP, PE and PVC-U to thin-walled main sewers. It is also possible to use Fabekun saddles for lateral connection of pipes made of PP, PE and PVC-U to thick-walled main sewers made of concrete, fibre cement and stoneware. The selection of connector depends on the internal diameter and wall thickness of the main pipe.
All types of pipe can be connected perfectly with each other. The system therefore establishes a new quality standard in terms of flexibility and water-tightness. This pipe coupler makes installation simpler, safer and quicker while making a sustainable contribution to environmental protection. In addition, the new VPC pipe coupler can also be used for permanent watertight connections of pipes with identical nominal diameters made of concrete, stoneware, fibre cement, PP, PE or PVC. These pipes may have a smooth, corrugated or ribbed external surface. The adaptation is carried out evenly centred and independently on either side of the pipe coupler.
Advantages
- Tested water-tightness up to 2.5 bar
- Non-corroding tie straps of V2A
- Double sealing profile on both sides
- Each side can accommodate an angle of up to 3°
- Easy and quick installation
- Stepless adaptation on both sides
Materials
Various plastics
Applications
- Saddle connectors for retrofitted connections of dn 160/200
- Pipe couplers for various pipe materials
- Watertight connection of different pipe materials
Field of application
- Saddle connectors for external main pipe diameters of 200 to 1500 mm
- VPC pipe coupler for external pipe diameters of 102 to 690 mm
Approvals
- Connex: Q-Plus certificate No. 19019
- Fabekun: Q-Plus certificate No. 19014
VPC pipe couplers
| Fluid pipe, nominal dimension | Size range, external diameter dn |
| 100 mm | 102 - 133 mm |
| 125 mm | 123 - 161 mm |
| 150 mm | 160 - 192 mm |
| 200 mm K | 183 - 226 mm |
| 250* mm | 250 - 324 mm |
| 300 mm | 313 - 382 mm |
| 455 mm | 385 - 455 mm |
| 565 mm | 495 - 565 mm |
| 590 mm | 520 - 590 mm |
| 730 mm | 660 - 730 mm |
| 850 mm | 780 - 850 mm |
| 940 mm | 870 - 940 mm |
| 1010 mm | 940 - 1010 mm |
* incl. eccentric ring for connection at base level
References

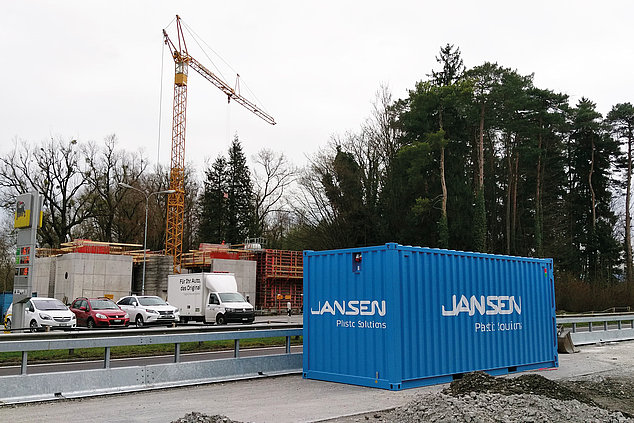

Rehabilitation of the A1 motorway
